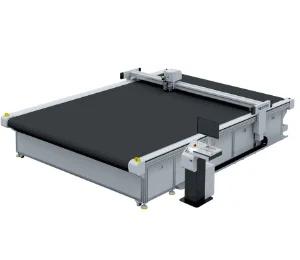

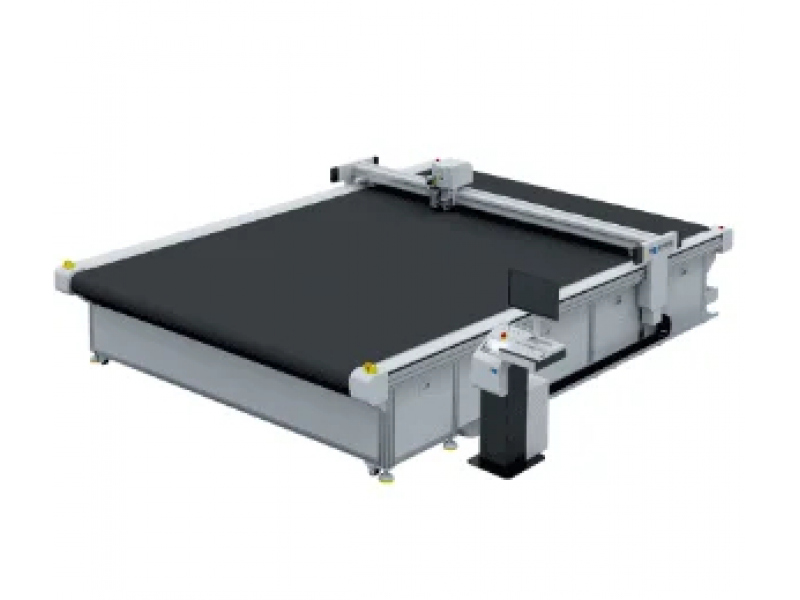

Digital Cutting Table CB08II

DCT Model CB08

Looking for a higher-capacity machine meant for large production runs? Then the CBL08 is the machine for you.

Key Features of Digital Cutting Machines

High cutting speeds of up to 1200 mm/s
High cutting accuracy of up to 0.01 mm
Digital control system with CAD/CAM software
High precision tool cutting
Can have auto material feeding and cutting
Multiple cutting heads for maximum efficiency

What do we mean by customisable?

Digital Cutting Table Machines can be configured with a large range of different tools to make your manufacturing process as streamlined as possible

Plotting Pens

Oscillating Knife System

Optical Camera Recognition For Easy Contour Cutting Of Designs

Creasing Tools

Driven Rotary

Kiss Cut Tool

Bevel Cut Tool

Milling Head (Extraction Required)

Auto Feed Bed Systems

Our digital cutting tables come in a wide range of bed sizes that will cater for most needs. However, should you need a custom-sized machine we can also have the ability to produce custom dimensions.

CB08 Range Technical Parameters
Multi-functional tool head	Oscillating cutting knife /Kiss cut/LED cursor location light, engraving/router (optional), creasing wheel, camera recognition (optional)
Safety system	Infrared sensors to prevent unsafe operation
Moving speed	Up-to 1500mm/s
Cutting speed	Up-to 1200mm/s
Cutting thickness	Up to 50mm (material dependent)
Cutting table type	Auto feed bed system
Vacuum Bed	Yes
Repeat accuracy	≤0.01mm
Buffer memory	2G
Transmission system	Digital servo driver, straight rail, synchronous belt, guide screw
Command system	HP-GL compatible format
Power Supply	380V±10% 3 Phase 32 amp supply on Machine Rated ‘D’ Breaker

CB08II Range Specification

CB08II Range Cutting Area
CB08II-2516PM	2500mm*1600mm
CB08II-3516PM	3500mm*1600mm
CB08II-5516PM	5500mm*1600mm
CB08II-2520PM	2500mm*2000mm
CB08II-3520PM	3500mm*2000mm
CB08II-5520PM	5500mm*2000mm
CB08II-3032PM	3000mm*3200mm
