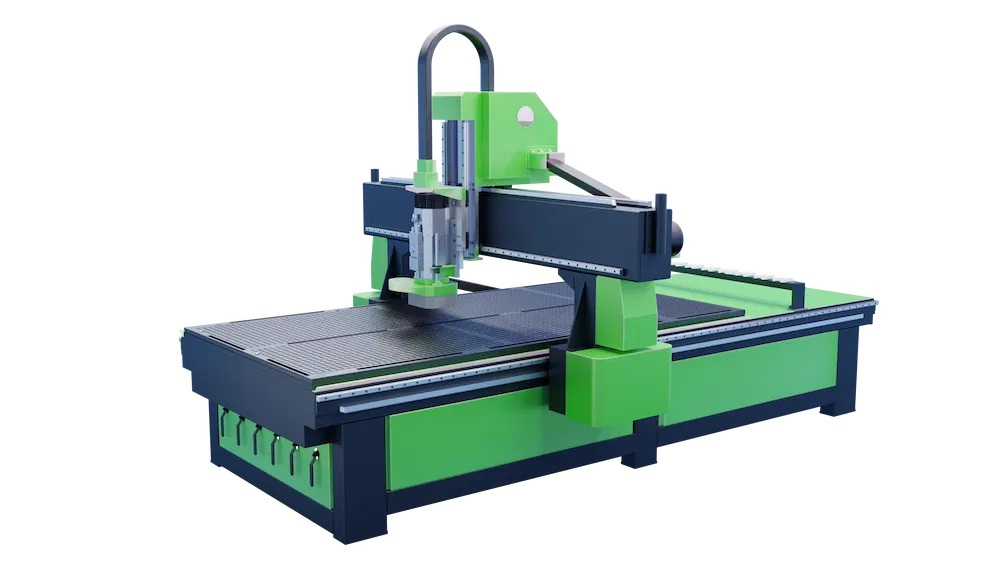

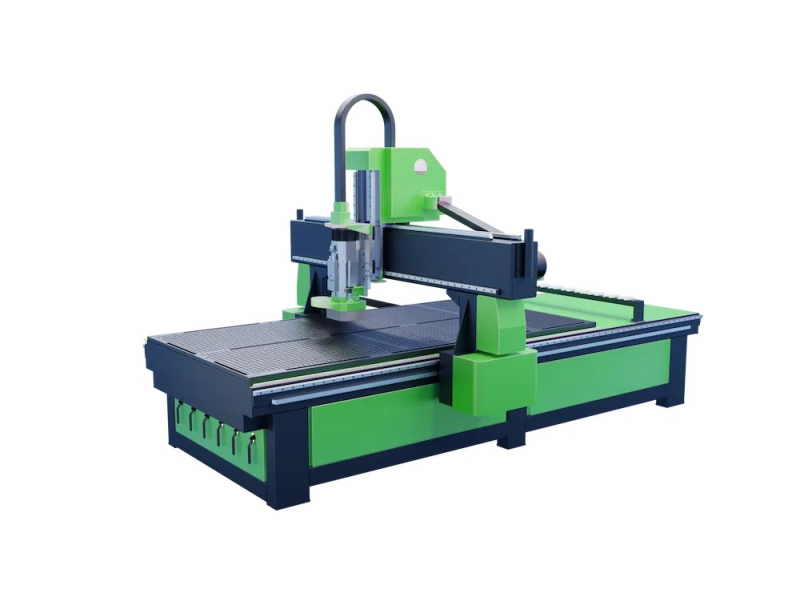

CNC ROUTER FALCON

Our Most Affordable ATC CNC Router Yet

Introducing the Falcon CNC router, which provides dependable, quick automatic tool-changing features and outstanding performance, all at an attractive price point.

Constructed with proven components, from its 9.0 kW air-cooled auto tool change spindle to its Delta servo-driven motors, this machine is built for reliability.

For businesses seeking a high-efficiency CNC router with automatic tool-changing capabilities that are also budget-friendly, the Falcon is your go-to choice.

Built with the end user in mind and available in a wide range of popular sizes (custom builds available upon request) :

1300 x 2500 x 300 mm
1500 x 3000 x 300 mm
2000 x 3000 x 300 mm
2000 x 4000 x 300mm

Falcon ATC Standard Features	Information

Spindle system	High-Performance 9.0kW Air Cooled ER32 Auto Tool Change Spindle and X10 Tool Positions as Standard
Bridge Z Height	300 mm
Mechanical drive	TBI Ballscrew on Z, Helical Rack & Pinion On X,Y
Drive system	High-Performance DELTA servo drives
Control system	NK105 hand controller
Vacuum bed type	Yes – Matrix Table with T-Slot
Vacuum system	Yes – including 5.5kW vacuum pump (s) qty is bed size dependant.
Extraction System	Yes
Software package	We advice Vectric V Carve Pro

Falcon standard configuration

Falcon CNC Router range in summary

The Falcon is a truly industrial CNC router, built to last and capable of automatic tool change. This CNC router offers all the essential features you need without any unnecessary extras, making it easy to operate.

With full control over automatic tool changes, businesses can increase their productivity and output.

If you’re seeking a dependable and well-built automatic tool change CNC router, the Falcon should definitely be at the top of your list.

CNC ROUTER FALCON ATC
PDF CNC ROUTER FALCON ATC

(1926.5 kb)
