PONUKA

CNC ROUTER TWIN BED

Increase Production with a Dual System

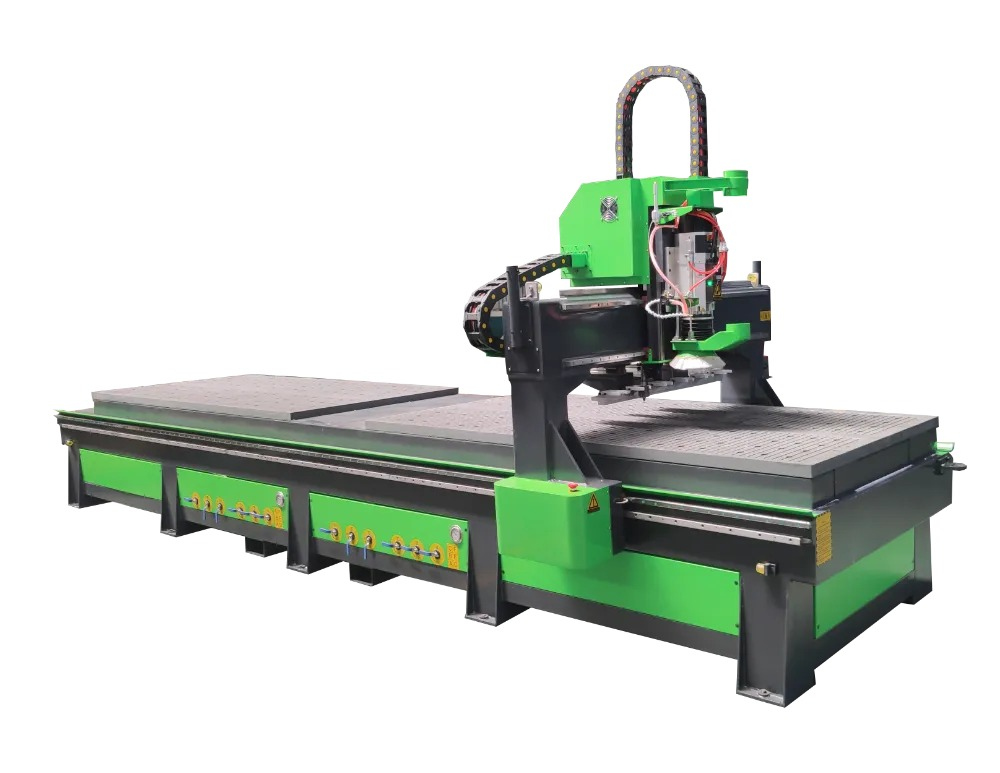

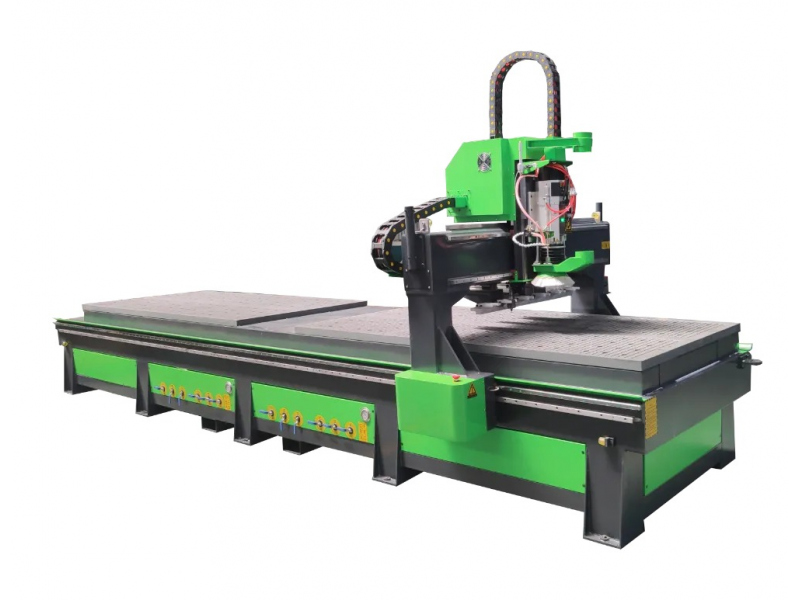

Meet our Dual Bed CNC Routers, featuring a dynamic, gantry-mounted automatic tool change system designed for high-speed operations. Take advantage of this pendulum-style CNC router to elevate your productivity.

Load materials onto one bed while the other is in operation, effectively increasing your throughput, reducing customer wait periods, and boosting your bottom line.

Choosing a Dual Bed CNC Router, also known as a Pendulum system, offers a substantial uplift in your production efficiency, enabling your business to thrive by minimising downtime in your manufacturing process.

Dual Bed CNC Standard Features	Information
Spindle system	9.0KW ER32 air-cooled spindle system up to 24,000 rpm. Dynamic, quick change ‘Gantry Mounted’ Tool Rack with positions ranging from 6-10.
Material location	Pneumatic pop-up and end-stop system for material location.
Mechanical drive	Helical rack and pinion, reciprocating ball screw drives.
Drive system	High-speed hybrid servo motor
Linear guide rails/carriers	HIWIN oil inject centralised linear rail lubrication.
Control system	Syntec Multi-Axis Control with ‘Wireless’ Remote Manual Pulse Generator
Vacuum bed type	Yes – Matrix Table (dual bed system)
Vacuum system	Yes – including 5.5kW vacuum pump (s) qty is bed size dependant.
Extraction System	Yes
Software package	We advice Vectric V Carve Pro
