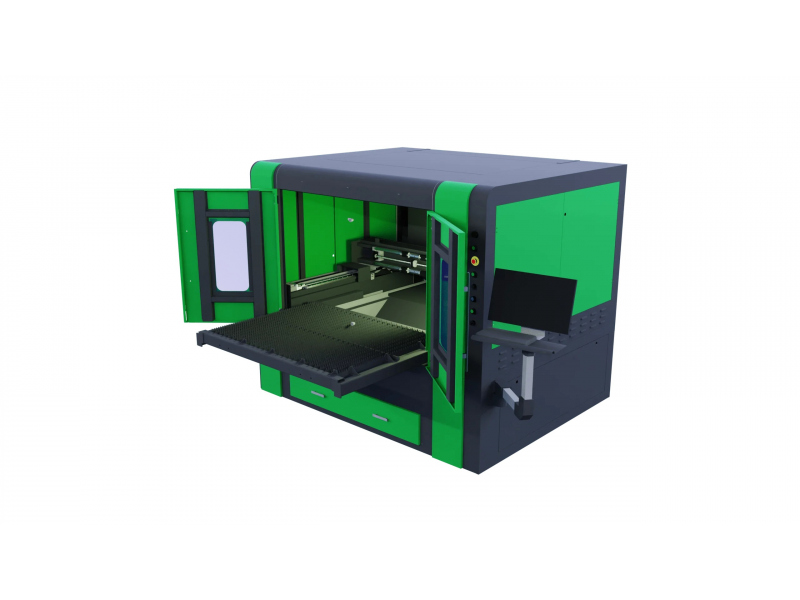

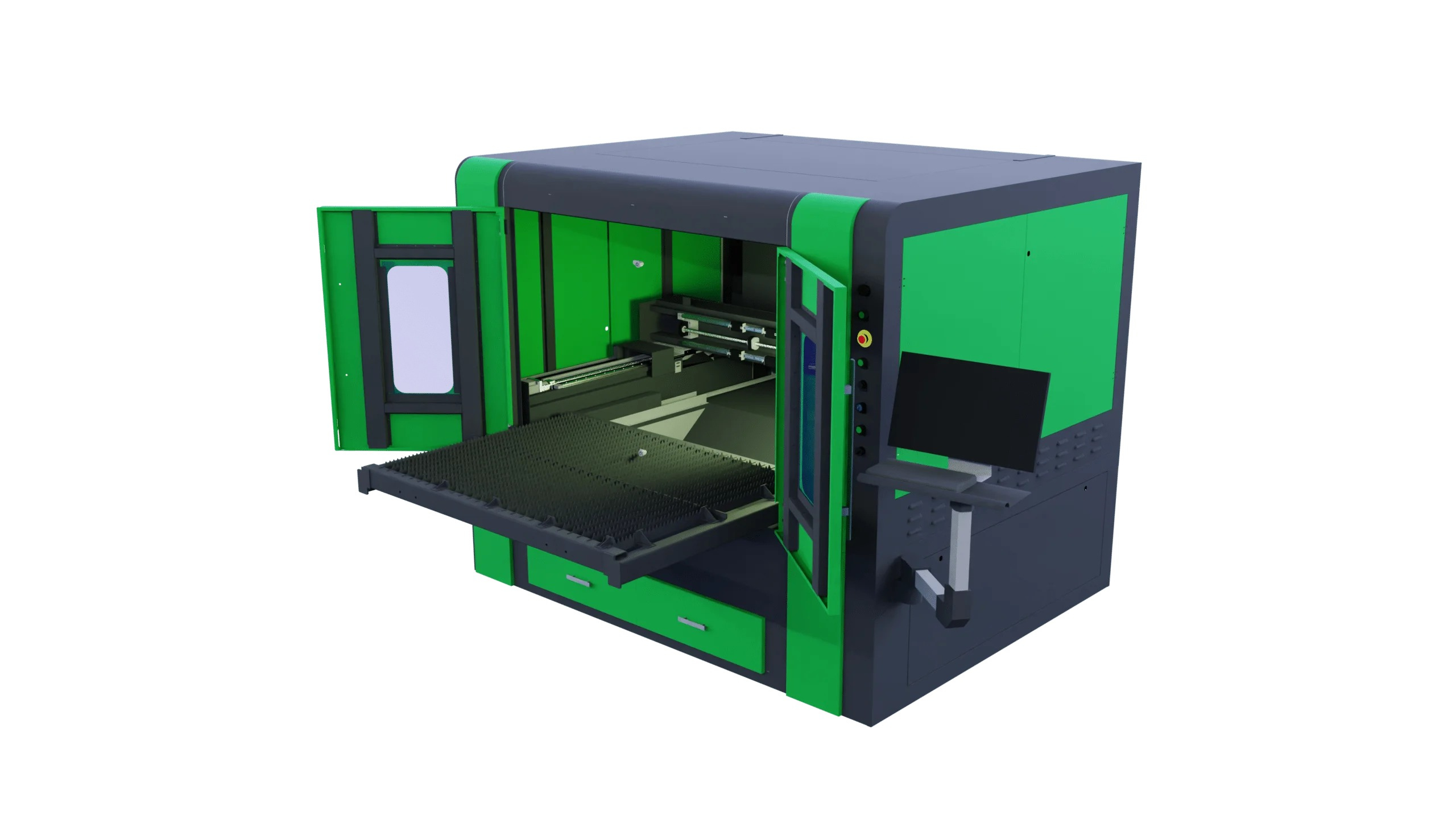

TITAN T1

Our latest Titan T1 Fiber Laser Metal Cutting System is our most affordable yet. It’s compact yet powerful and loaded with features while still being affordable.

These metal-cutting lasers are priced competitively and offer unmatched features for their price. They come in a full enclosure with full safety features implemented throughout the range.

Impressive performance in a compact package.

Titan T1 Fbre Laser Cutter	Information
Safety Enclosure	Yes – full safety enclosure to protect your operators from any stray beams and to aid in the safe extraction of cutting vapour.
Bed Sizes	1300 x 900 mm
Laser Source Options	1.5kW, 2kW
Cutting Head	Raytools – Autofocus
Servo Motors	Yes – Yaskawa
Drive System	Double Y Axis ball screw transmission
Guide Rails	HIWIN
Ball Screw	TBI
Water Chiller	Yes – S&A CWFL Series (model, laser source dependent)
CNC Control	Cypcut
Software package	Cypcut laser cutting control system
Work Table Type	Blade saw worktable
Consumables	X6 nozzles, X6 protective lenses, X1 focusing lens
Power requirements	3 Phase AC 380V 50HZ
Installation & Training	Included
