TITAN T2 and T2 PLUS

Our Most Popular Fibre Laser – Available in 2 Sizes

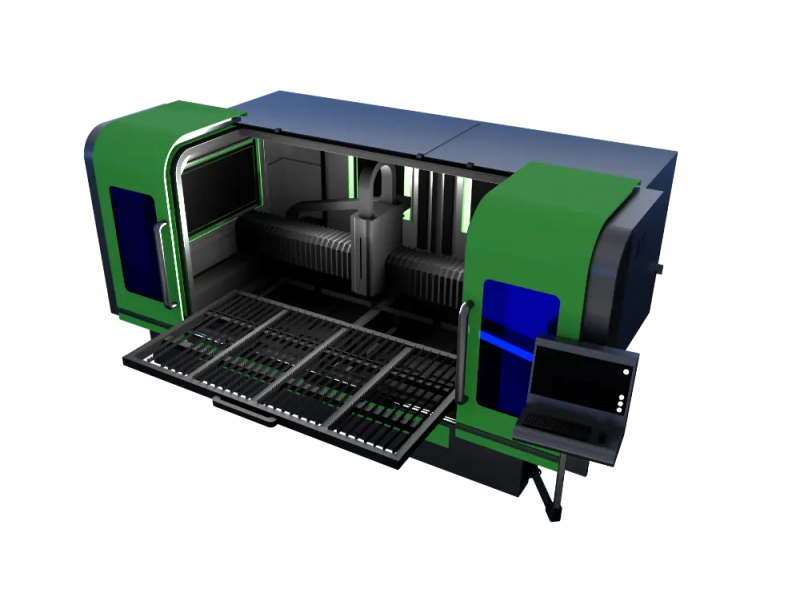

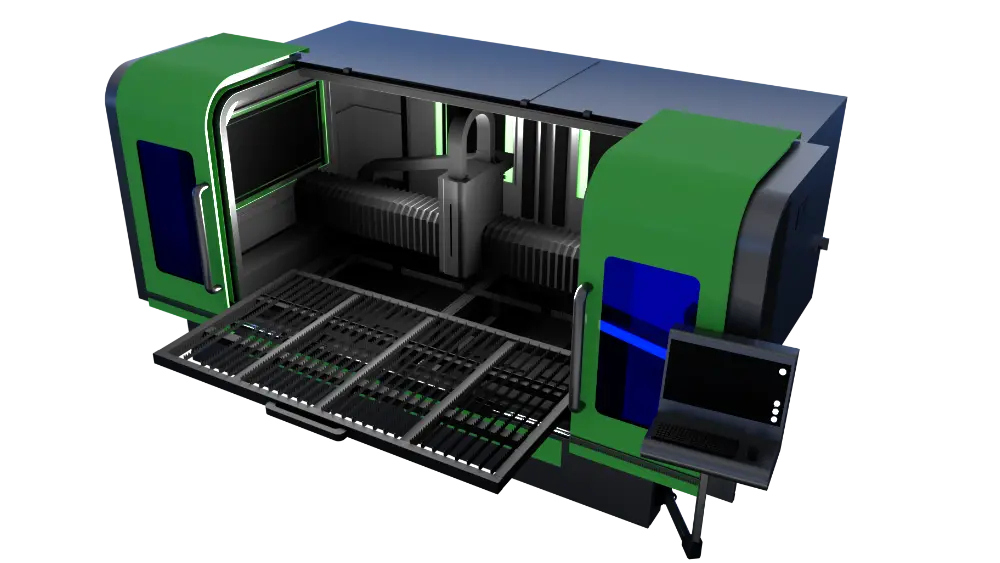

The Titan T2 is a fully enclosed Fibre Laser Cutting Machine that is affordable and packed with features. It includes a pull-out loading table to ensure maximum compactness.

With a 1260 x 2510 mm bed size, the Titan T2 range of fibre cutters is ideal for smaller workshops with limited space. The T2 Plus model also offers a more significant bed option of 1500 x 3000 mm. Touch Screen Operated. Now available up to 12kw Cutting Power!.

Titan T2 Fibre Laser Cutter	Information
Safety Enclosure	Yes – full safety enclosure to protect your operators from any stray beams and to aid in the safe extraction of cutting vapour.
Bed Sizes	1260 x 2510 mm (T2 model) or 1500 x 3000 mm (T2 Plus)
Laser Source Options	1kW, 1.5kW, 2kW, 3kW, 4kW, 6kW, 12kW
Cutting Head	Raytools – Autofocus
Servo Motors	Yes – Yaskawa
Drive System	Double Y Axis ball screw transmission (Rack & Pinion on the T2 Plus Model)
Guide Rails	HIWIN
Ball Screw	TBI
Water Chiller	Yes – S&A CWFL Series (model, laser source dependent)
CNC Control	Cypcut with touch screen enabled monitor
Software package	Cypcut laser cutting control system
Work Table Type	Blade saw worktable (Easy Loading System)
Consumables	X6 nozzles, X6 protective lenses, X1 focussing lens
Power requirements	3 Phase AC 380V 50HZ
Installation & Training	Included
