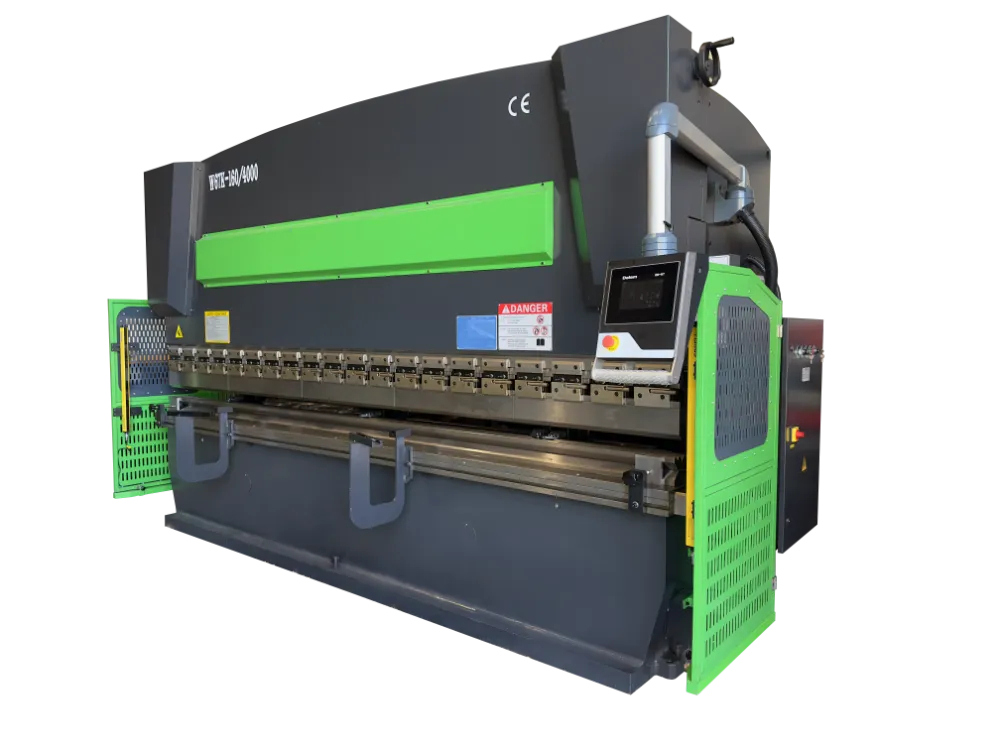

| Press Brake Features | Information |
|---|---|
| Construction | All steel welded mono-block construction, ensuring minimum deflection under load |
| Safety systems | CE certified – includes light curtain safety barriers, side and rear mechanical safety guards with interlock switches |
| Adjustment | Adjustable mechanical Cams to set the upper position & work speed change point |
| Control system | Delem DA-41T Touch operated CNC control (pendant) |
| Ram stroke control | Motorised ram stroke control incorporating precision mechanical depth-stops and adjustable |
| Tool configuration | Gooseneck top tool and multi-V bottom tool |
| Back gauge | Motorised back gauge including 2 off tiltable finger stops |
| Adjustable tonnage | Gauge and adjustable pressure switch allowing simple control of tonnage settings |
| Depth stops | Motorised setting of mechanical depth stops incorporated above the cylinders |
| Dwell time adjustment | Yes |
| Front support arms | X2 off-front sheet Support Arms with tilting stops |
| Single and auto-cycle | Selector switch for single or auto-cycle operation of the beam |
| Overload protection | Hydraulic and electric overload protection |
| Foot pedal control | Yes – moveable foot pedal control |
| Clamping | Intermediate clamping for euro/system top tooling |
| Full top Euro tooling with an additional 800mm section for segmenting | |
| Back gauge assembly mechanical drive | Ball screw for back gauge assembly |
| Additional | Instructions and maintenance manuals, service kit |
| Model Specifics | HP15040 | HP2580 | HP3100 | HP3160 |
|---|---|---|---|---|
| Working length | 1500 mm | 2500 mm | 3200 mm | 3200 mm |
| Capacity | 40 tonne | 100 tonne | 100 tonne | 160 tonne |
| Throat gap | 200 mm | 250 mm | 400 mm | 400 mm |
| Standard MOT back gauge | 600 mm | 600 mm | 600 mm | 600 mm |
| Motor power | 5kW | 5.5kW | 7.5kW | 11kW |
| Weight (Tonnes) | 2.5 T | 5 T | 8.1 T | 10.9 T |
| Dimensions L/W/H (mm) | 2200 x 1400 x 2100 | 3000 x 1500 x 2300 | 3750 x 1800 x 2650 | 3750 x 1800 x 2650 |
